Product Description:
Non-woven fabric double-sided adhesive is made of strength non-woven coated acrylic pressuresensitive adhesive, with rebound, warpage, heat resistance, good temperature resistance, and has strong adhesive force and retention force, and has a variety of substrates. Better adhesion, convenient, easy to tear, use clean
Product Features:
Uses excellent adhesion on any material.
Good stability, easy mold
Good durability
Main application:
Labeling, photo envelopes, hook manufacturing, name-plates, membrane switches, Automotive Industry, Packaging Industry, Construction Industry

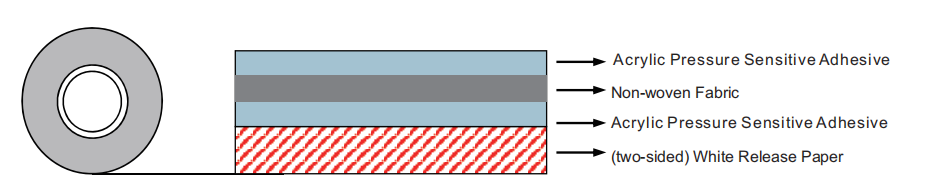

Product structure:
| Basic material: | non-woven fabric |
| Thickness of release paper:0.15mm | Thickness of non-woven fabric:0.02mm |
| Thickness of glue(double-sided): | 0.10mm |
| Total thickness(not including the thickness of release paper): | 0.15±10% mm |
| 180 peel adhesion（20min）inside（A face） | SUS ≥ 2200 ABS ≥ 2300 g.f/inch PC ≥ 2200 |
| 180 peel adhesion（20min）outside（B face） | SUS ≥ 2000 ABS ≥ 1800 g.f/inch PC ≥ 1800 |
| Dynamic shear strength(20min) SUS | ≥ 20 kg.f/in² |
| Retention force | 80℃，500g 25℃，1000g ≥ 24 hour |
| Temperature resistance | short period 120℃ long range 80℃ |
| The color of release paper: | white |
GUARANTEE PERIOD
1 year, the best storage temperature 22 °C, relative humidity 50% RH.,
IMPROTANT (Read it before use)
◆ In order to achieve the best bonding strength, the surface of the material should be thoroughly cleaned with no oil and stain
◆ Pre-bonded cleaning material surface
◆ The best use temperature is 18°C to 25°C
Sea 5 will not provide any explicit or Implied warranty, including whether to buy or if it is suitable for a
particular purpose. The data all above is average value, it was obtained by our professional knowledge
and experience, We suggest you(valued customer) can do the tests by yourself to determine the
specifications. According to the results of the adhesive tape's test, we can guarantee that all products
of Sea 5 shipped out will without defects
